Metal Finishing Machines

Garboli metal finishing machines develop specified surface results on tubes, bars, wire, profiles and flat workpieces. Abrasive belts and selected brush configurations provide preparation, satin finishing or polishing according to the incoming surface and final requirement. Finishing is the wider process family: mirror polishing is one particular result, not a finish that every machine can achieve.

All Finishing machines

LT-HYBRID — planetary grinding machine LT-HYBRID
Diameter min. / max.: 2-110 mm
Abrasive belt dimensions: 2050x200 mm
LT-HYBRID S/2 — Multihead wire finishing machine LT-HYBRID S/2
Diameter min. / max.: 2-110 mm
Abrasive belt dimensions: 2050x200 mm
LT 200 S HB — Round bars polishing machine LT 200 S HB
Diameter min. / max.: D = 10-219mm
Abrasive belt dimensions: S = 1975 mm | L = 120 mm
Multihead bars finishing machine LT 200S HB WET
Diameter min. / max.: D = 10-219mm
Abrasive belt dimensions: S = 1975 mm | L = 120 mm
LT TITAN — Steel bars polishing machine LT TITAN
Diameter min. / max.: D = 1-120 mm (5" max)
Abrasive belt dimensions: S = 2050 mm | L = 150 mm
LPC 300 S — Multihead pipe polishing machine LPC 300 S
Diameter min. / max.: D = 3-100 mm
Abrasive belt dimensions: S = 940 mm | L = 60 mm
LPC 90-135 — Tight bent tube polisher Grinding machines LPC 90-135 Orbital belt grinding machine
Diameter min. / max.: D = 5-25/5-35 mm (1" max)
Abrasive belt dimensions: S = 262/290 mm | L = 14 mm
LPC 300 — Tube grinding machine Grinding machines LPC 300 Orbital abrasive belts polishing machine
Diameter min. / max.: D = 5-114 mm (4,5" max)
Abrasive belt dimensions: S = 940 mm | L = 60 mm
LPC 300 Vs — Bent tube finishing machine Grinding machines LPC 300 Vs Planetary abrasive belts polishing machine
Diameter min. / max.: D = 5-114 mm (4,5" max)
Abrasive belt dimensions: S = 940 mm | L = 30 mm
LPC 500 — Belt finishing machine Grinding machines LPC 500 Orbital pipe polisher with abrasive belts
Diameter min. / max.: D = 10-203 mm (8" max)
Abrasive belt dimensions: S = 1570 mm | L = 90 mm
LPC 500 Wet — Bent pipe polishing machine Grinding machines LPC 500 Wet Orbital abrasive belts finishing machine
Diameter min. / max.: D = 10-203 mm (8" max)
Abrasive belt dimensions: S = 1570 mm | L = 90 mm
LT 130 — Round Tube polishing machine Grinding machines LT 130 Abrasive belts orbital grinding machine
Diameter min. / max.: D = 10-127 mm (5" max)
Abrasive belt dimensions: S = 2000 mm | L = 120 mm

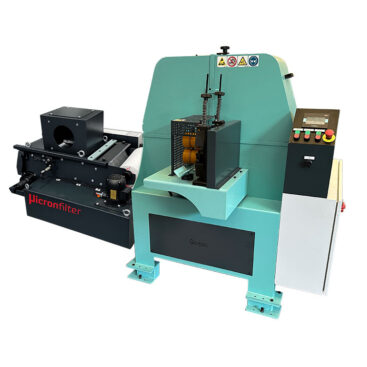

LT 130 WET — Belt polishing machine Grinding machines LT 130 WET Orbital abrasive belt polishing machine
Diameter min. / max.: D = 10-127 mm (5" max)
Abrasive belt dimensions: S = 2000 mm | L = 120 mm
LT 200 — Taper poles grinding machine Grinding machines LT 200 Abrasive belts grinding machine
Diameter min. / max.: D = 20-219 mm (8,6" max)
Abrasive belt dimensions: S = 1975 | L = 120 mm
LT 200 WET — Round bars finishing machine Grinding machines LT 200 WET Orbital abrasive belt polishing machine
Diameter min. / max.: D = 20-219 mm (8,6" max)
Abrasive belt dimensions: S = 1975 mm | L = 120 mm
LT 130 S — Multihead tube finishing machine Grinding machines LT 130 S Orbital grinding line with planetary polishing machine
Diameter min. / max.: D = 10-127 mm (5" max)
Abrasive belt dimensions: S = 2000 mm | L = 120 mm
LT 130 S-WET — Multihead polishing machine LT 130 S-WET
Diameter min. / max.: 10 / 127 mm
Abrasive belt dimensions: 2000 x 120 mm
LT 200 S-WET — Multihead finishing machine LT 200 S-WET
Diameter min. / max.: 20 / 219 mm
Abrasive belt dimensions: 1975 x 120 mm
EDGE — Stroke belt linishing machine EDGE
Min/max thickness: 5 – 1200 mm
Abrasive belt dimensions: 8000 x 150 mm
LE — Tube end grinding machine Grinding machines LE Belt finishing machine
Diameter min. / max.: D = 10-50 mm (2" max)
Abrasive belt dimensions: S = 1200 mm | L = 80 mm

Match the process to the required appearance

Satin finishing develops a defined surface texture. Polishing produces a smoother or more reflective appearance, while mirror polishing requires suitable preparation and dedicated equipment. Abrasive type, grit sequence, feed and wet or dry operation determine the result together with the material and initial surface condition.

Grinding removes material during preparation. Specify the final texture or appearance and the area to be finished when selecting subsequent stages.

Tube, profile and flat-surface configurations

Orbital systems treat the external section of tubes and bars. Straight workpieces may use powered feed; bent tubes require compatible guidance and bend clearance. Abrasive-belt and brush arrangements for flat surfaces process the presented face of a sheet or profile. Multiple heads can provide successive stages where the selected configuration supports them.

Available tube and bar configurations include separate diameter ranges of 5–114 mm and 10–203 mm. Selected flat-workpiece machines cover widths of 10–300 mm and thicknesses of 1–150 mm, with feed rates of 1–10 m/min. Selected straight-tube arrangements offer 1–20 m/min. These values describe different machines and setups, not a working envelope shared by the entire line.

Wire and connected production

Wire finishing uses dedicated abrasive units and guidance for continuous material feed. Wire diameter, incoming condition and line speed determine the sequence. Feeding or pulling equipment moves the wire; the working units act on its surface.

Garboli Range finishing machines serve dedicated fabrication tasks; Performance finishing systems address larger, continuous processes and integration. Output, workpiece and surface result guide the choice.
