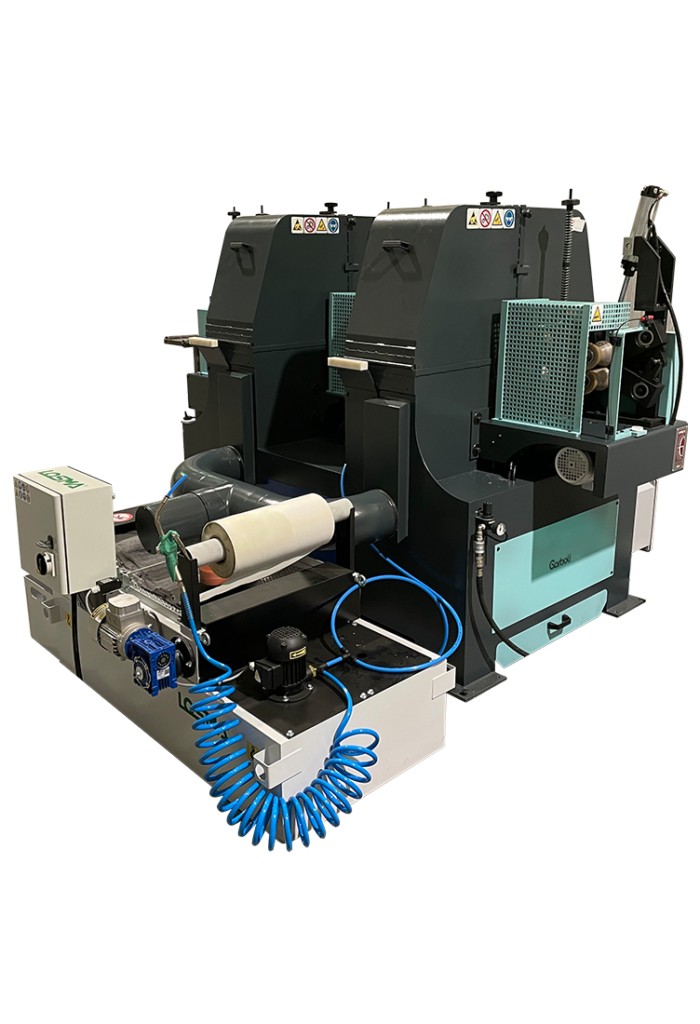

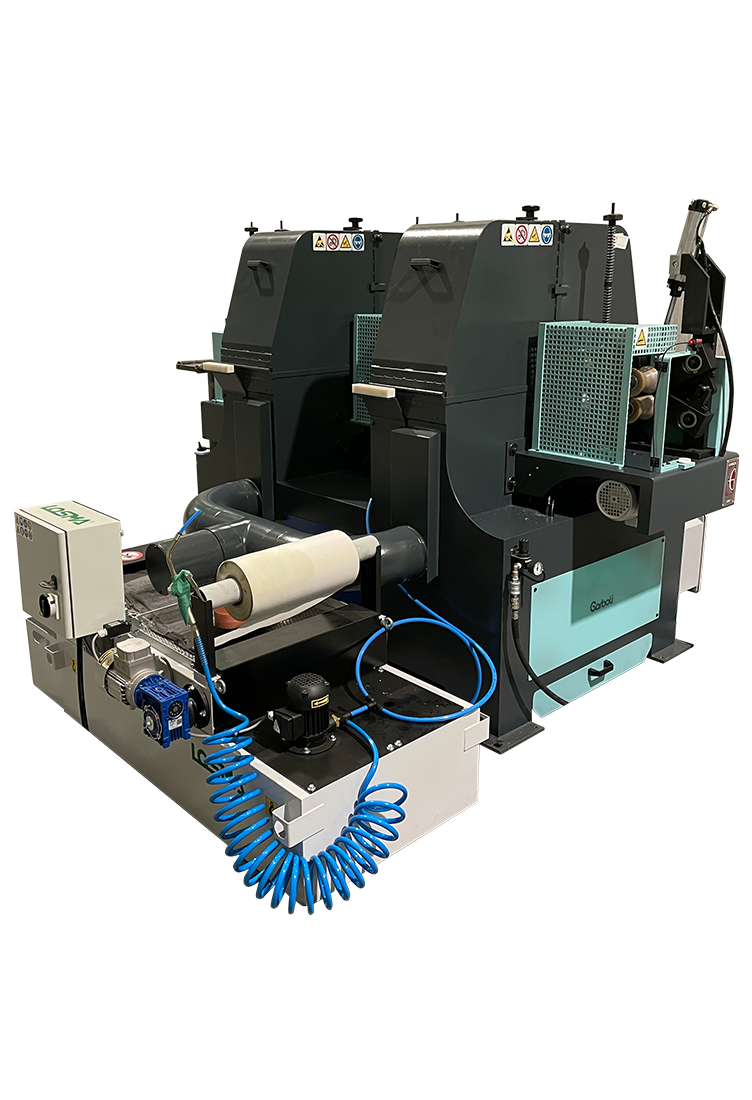

The planetary WET multihead grinding machine is a high-performance solution designed for precise tube and bar finishing.

It features two grinding units mounted on a single baseframe: the first head performs efficient rough grinding, while the second grants superior finishing on straight parts with round, oval, elliptical, or irregular sections, processing stainless steel, iron, aluminium, brass, and other metals. This machine is particularly suitable for light alloys, aluminium, and titanium components.

Supplied fully assembled and ready to operate, the machine includes self-centering front and rear feed systems that can also handle taper or specially shaped parts, ensuring high results and productivity. For added versatility, the machine can operate in dry mode with an optional, easy-to-install dust collection cap, making it ideal for demanding industrial and metal fabrication applications requiring precision, flexibility, and superior surface quality.

Technical specifications

Diameter min. / max.20 / 219 mm
Abrasive belt dimensions1975 x 120 mm
Disk motor2,2 x2 kw
Abrasive belt motor11 x2 kw
Hydraulic pump motor 0,21kw
Feed motor0,25 x4 kw
Feed speed1/20 mt/min
Overall dimensionsH = 155 cm | P = 230 cm | L = 220 cm

Equipment on request

Abrasive belts speed adjustable (10-30 mt./sec.) with  inverter equipment  ( 11 Kw.) and digital display with mt/sec. real values
Abrasive belts speed adjustable (10-30 mt./sec.) with inverter equipment ( 11 Kw.) and digital display with mt/sec. real values
Loader/unloader “step by step” for straight tubes – max length 6000 mm.
Loader/unloader “step by step” for straight tubes – max length 6000 mm.
Touch-screen display and PLC with device  for remote assistance
Touch-screen display and PLC with device for remote assistance
Annual fee for remote assistance management
External cooling tank (100 lt. capacity) with automatic filtering paper roll up
External cooling tank (100 lt. capacity) with automatic filtering paper roll up
