LT 130 WET

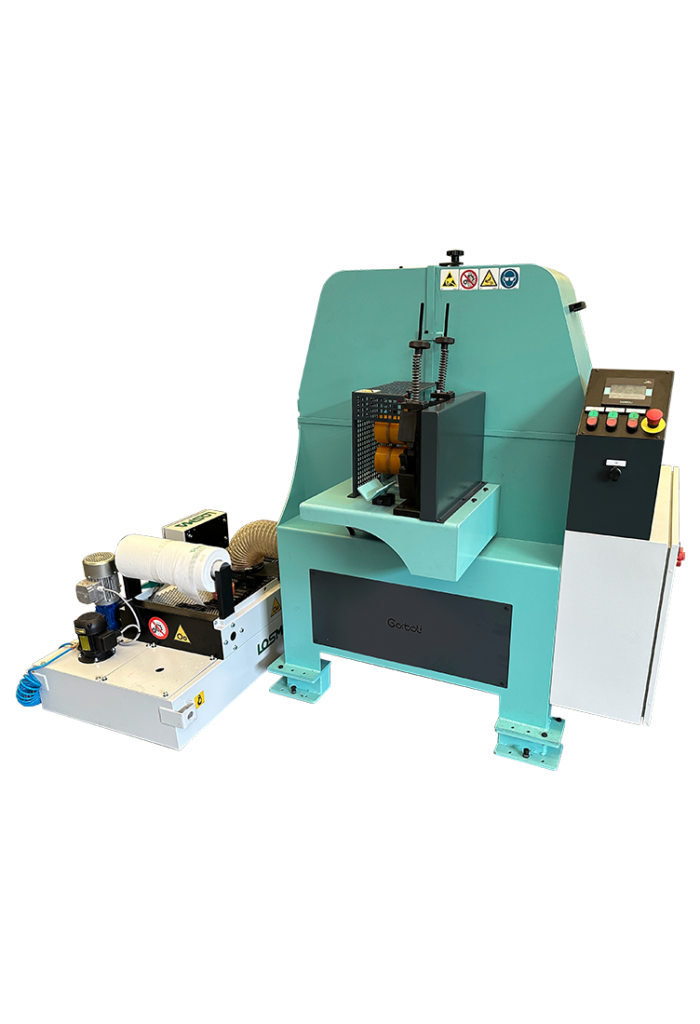

The LT130 WET orbital abrasive belt polishing Machine is a high-performance planetary grinding solution designed for large-scale production.

Like its dry counterpart, the LT130, it delivers efficient grinding, satin finishing, and polishing on straight tubes with round, oval, elliptical, or irregular sections, processing stainless steel, carbon steel, aluminium, brass, and other metals with precision.

Equipped with an advanced wet processing system, the LT130 WET is particularly well-suited for light alloys, aluminium, and titanium, ensuring superior surface quality even on heat-sensitive materials. The machine is supplied fully assembled and ready to operate, requiring no additional installation. Its self-centering feed system allows seamless processing of taper tubes and parts with different diameters, while an optional connection to an external dust collection system enables dry processing when needed.

With its combination of versatility, precision, and high output capacity, the LT130 WET is ideal for industrial tube finishing and metal fabrication applications requiring consistent, professional-quality results.

Technical specifications

Diameter min. / max.	D = 10-127 mm (5" max)
Abrasive belt dimensions	S = 2000 mm \| L = 120 mm
Disk motor	2,2 kw
Abrasive belt motor	5,5 kw
Hydraulic pump motor	0,21kw
Feed motor	2 x 0,25 kw
Speed	1-20 m/min
Feed speed	1-20 m/min
Net Weight	810kg
Overall dimensions	H = 155 cm \| P = 200 cm \| L = 135 cm

Equipment on request

External cooling tank (100 lt. capacity) with automatic filtering paper roll up

AN/A equipment, complete with “Keyence” photocell and PLC to determi nate abrasive belts opening and closing

Powered back feed rollers

Abrasive belts speed adjustable (10-30 mt./sec.) with increased power special inverter equipment ( 7,5 Kw.) and digital display with mt/sec. real values
