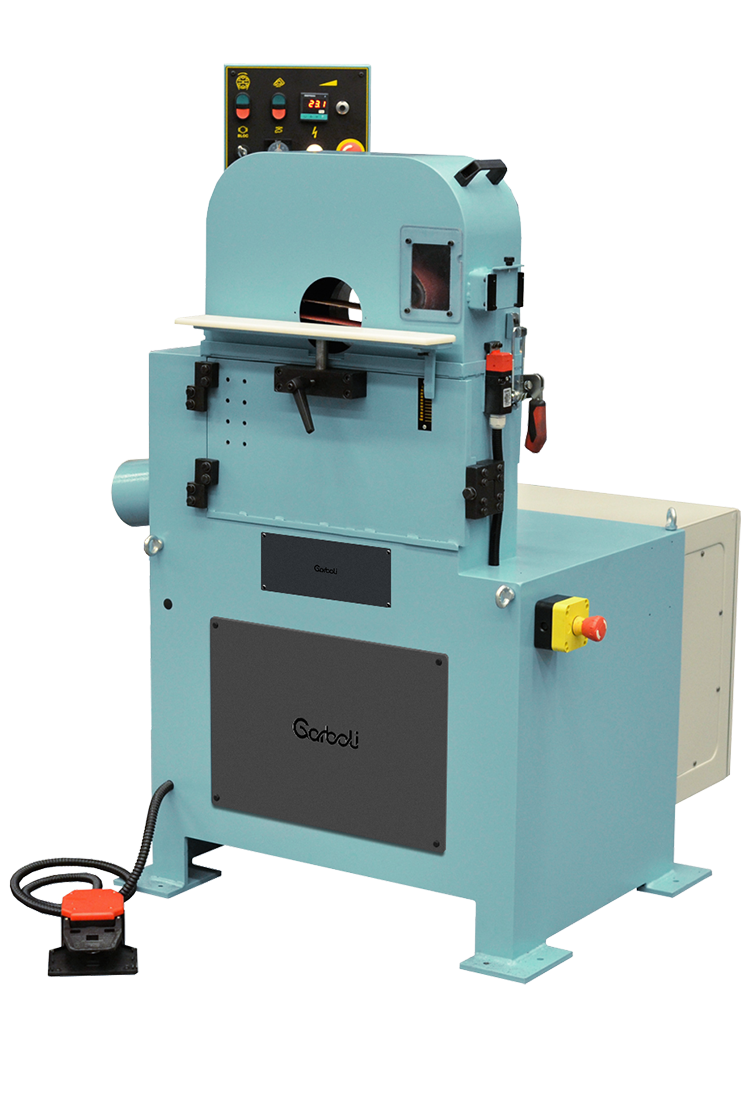

LPC 300 Mirror

The LPC300 mirror orbital polisher, the “big sister” of the LPC160 Mirror, is a high-performance solution for achieving flawless mirror polishing and buffing on both straight and bent tubes.

It efficiently handles round, oval, and irregular sections made of stainless steel, iron, aluminium, brass, and other metals, covering diameters from 5 to 114 mm. For enhanced convenience, the machine can be optionally supplied with a liquid paste dispenser, and a variety of additional accessories are available on request to customize the system for specific production needs.

For specialized applications, the LPC300 MIRROR orbital polishing machine can also be used with standard abrasive belts for grinding and surface preparation prior to mirror polishing, ensuring perfect pre-finishing results. This unit is delivered complete with an Inverter device, providing precise control and optimal performance for professional-grade mirror finishing.

Technical specifications

Diameter min. / max.	D = 5-114 mm (4,5" max)
Minimum bending radius	R1 = min. 150 mm \| R2 = 1,5 x Ø mm
Abrasive belt dimensions	S = 940 mm \| L = 60 mm
Overall dimensions	H = 150 cm \| P = 100 cm \| L = 100 cm

Equipment on request

AN foot pedal equipment for an easier workpiece insert between the abrasive belts

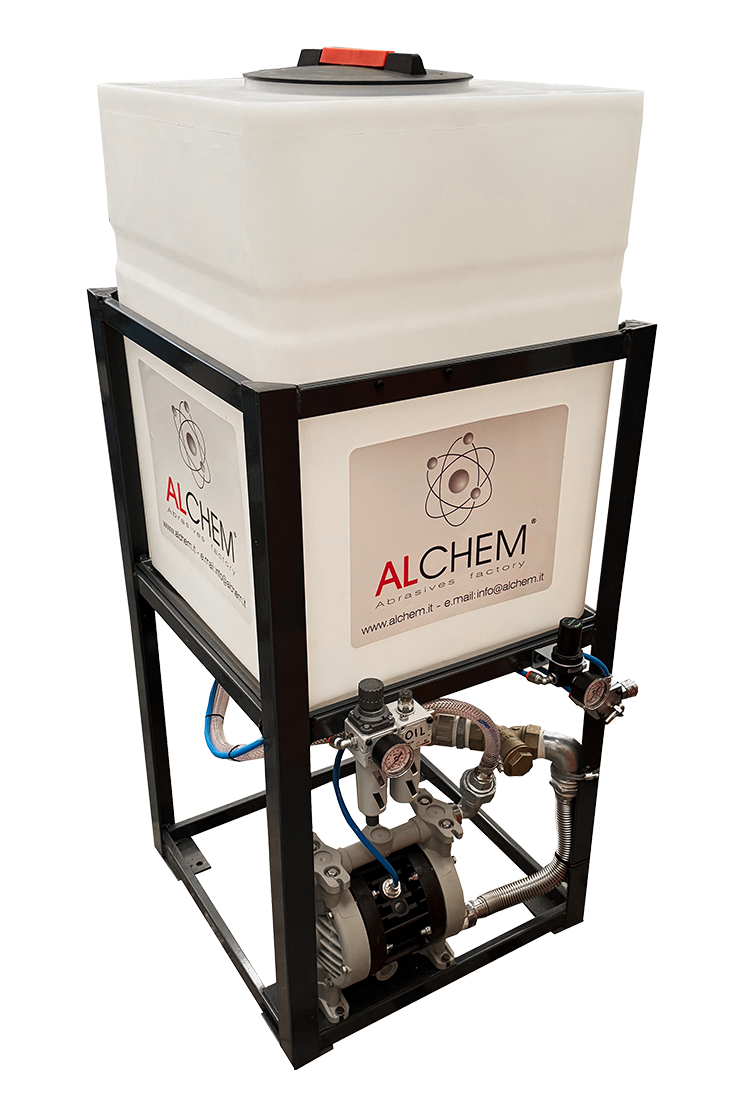

Automatic dispenser for liquid abrasive paste (NET price)

AN/A equipment that AVOID BELTS BREAKING, with “Keyence” photocell and in/ out timers to determinate belts opening / closing (to link with AV-AVU-ADN-ALT feed systems)

ADN automatic feed system for straight tubes with 4+4 rollers diameter 20-90 mm. (NOT for taper parts), with adjustable speed by inverter (hinged for “manual” feed)
