LPC 300 Wet

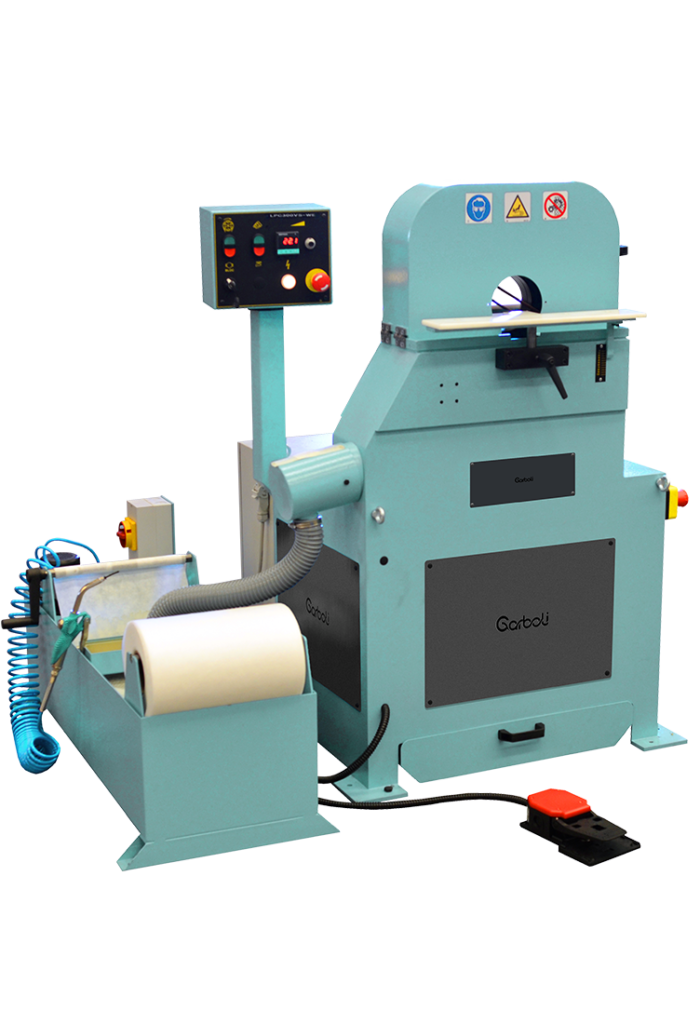

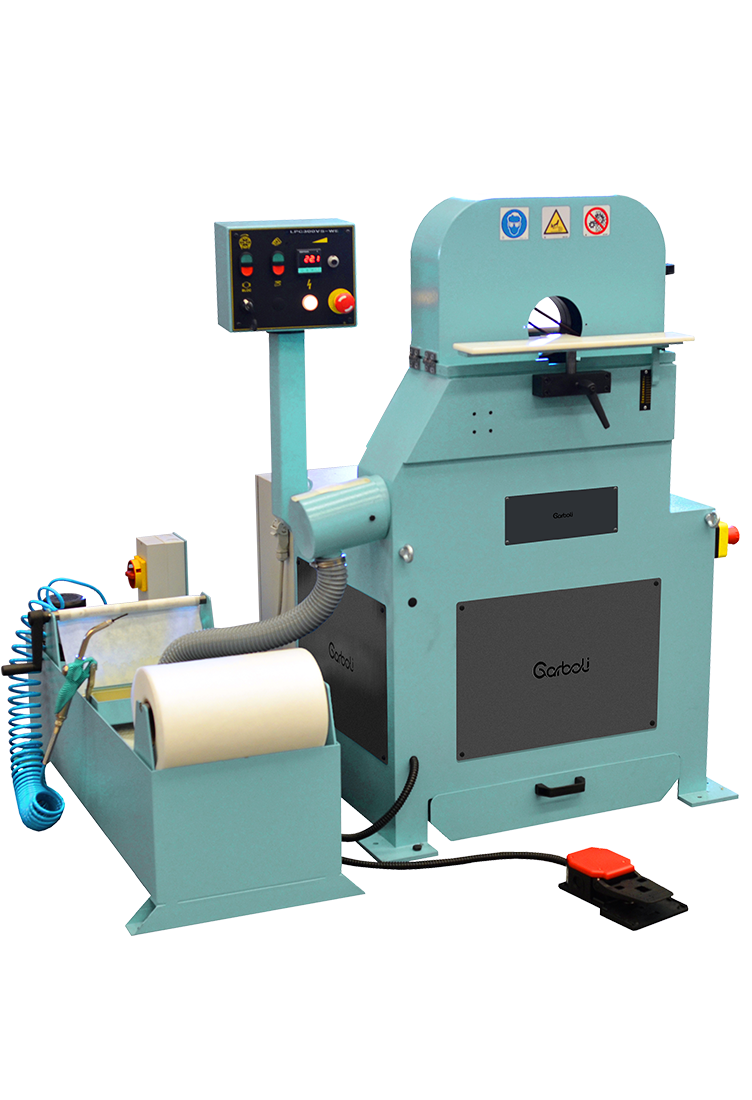

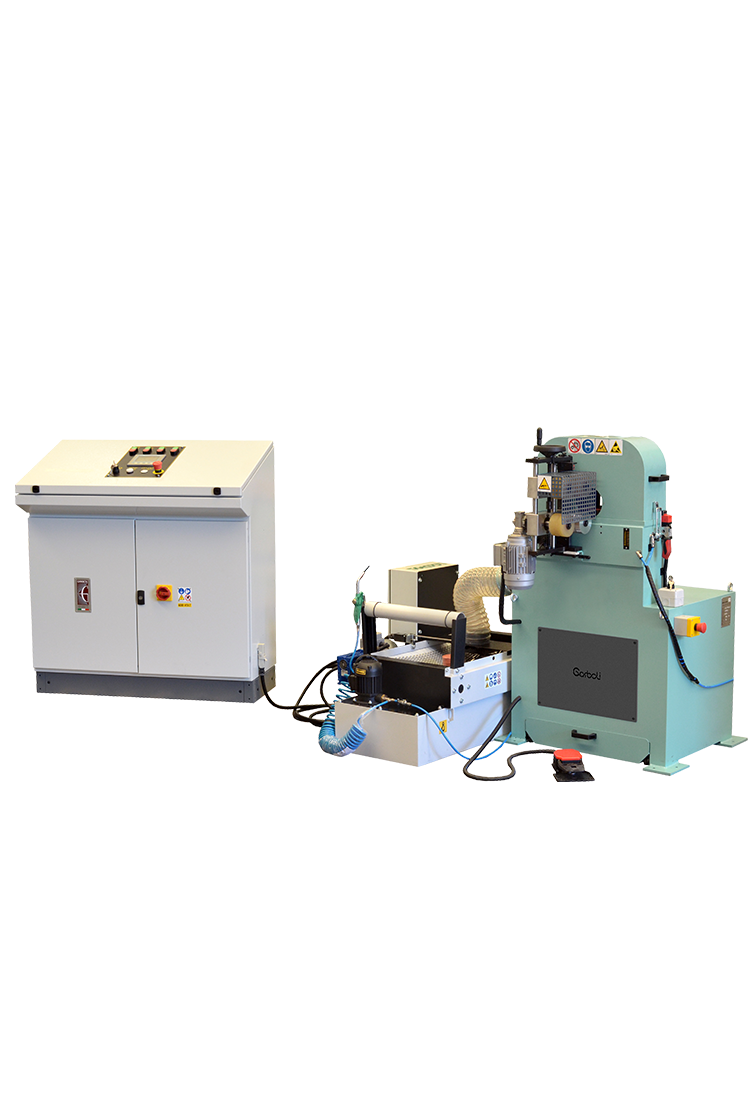

The LPC300 WET orbital abrasive belt grinding machine is one of the most popular models in our orbital polishing range, designed for tube grinding and polishing.

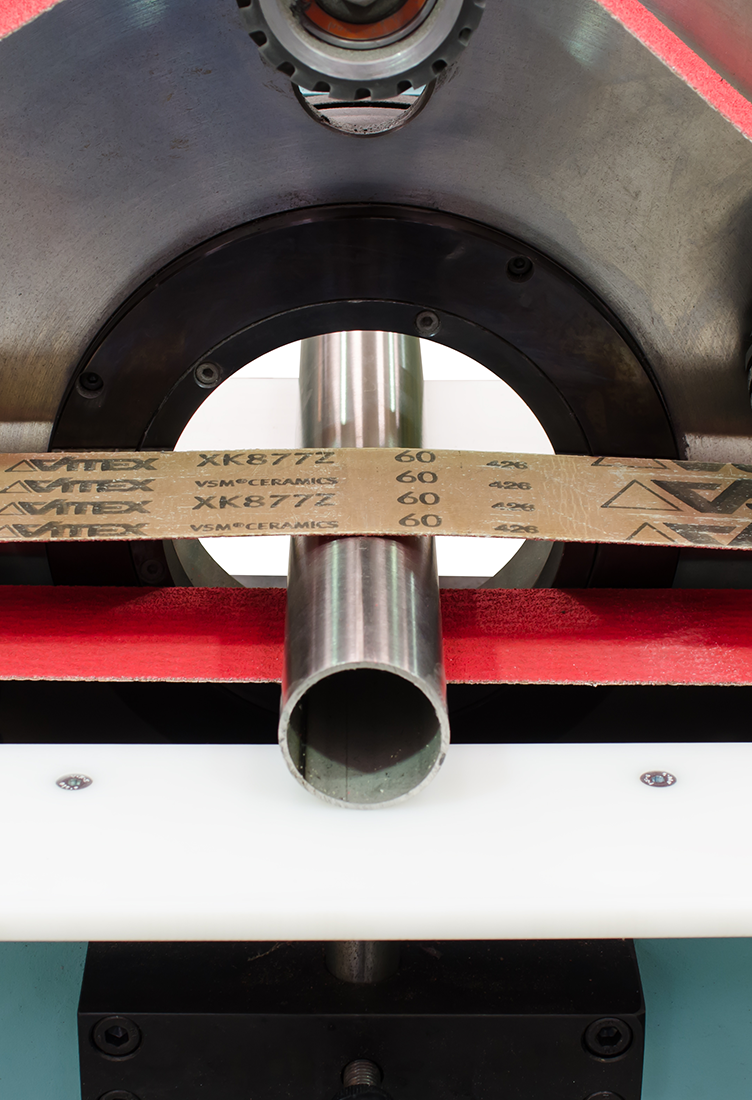

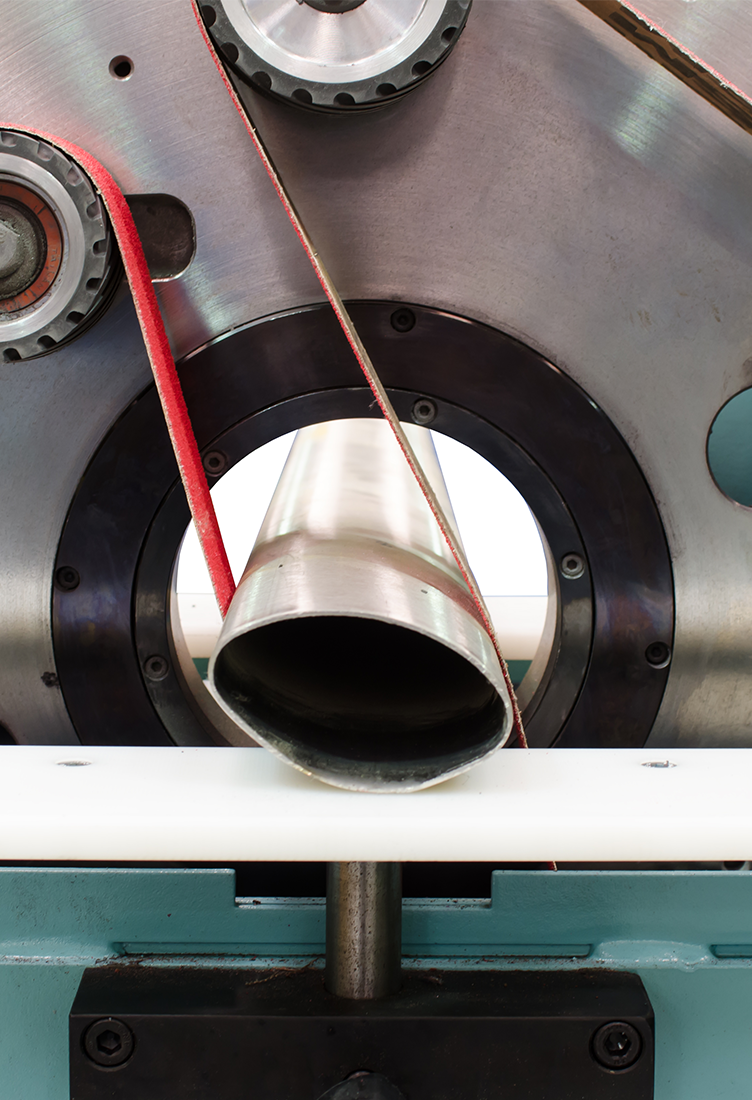

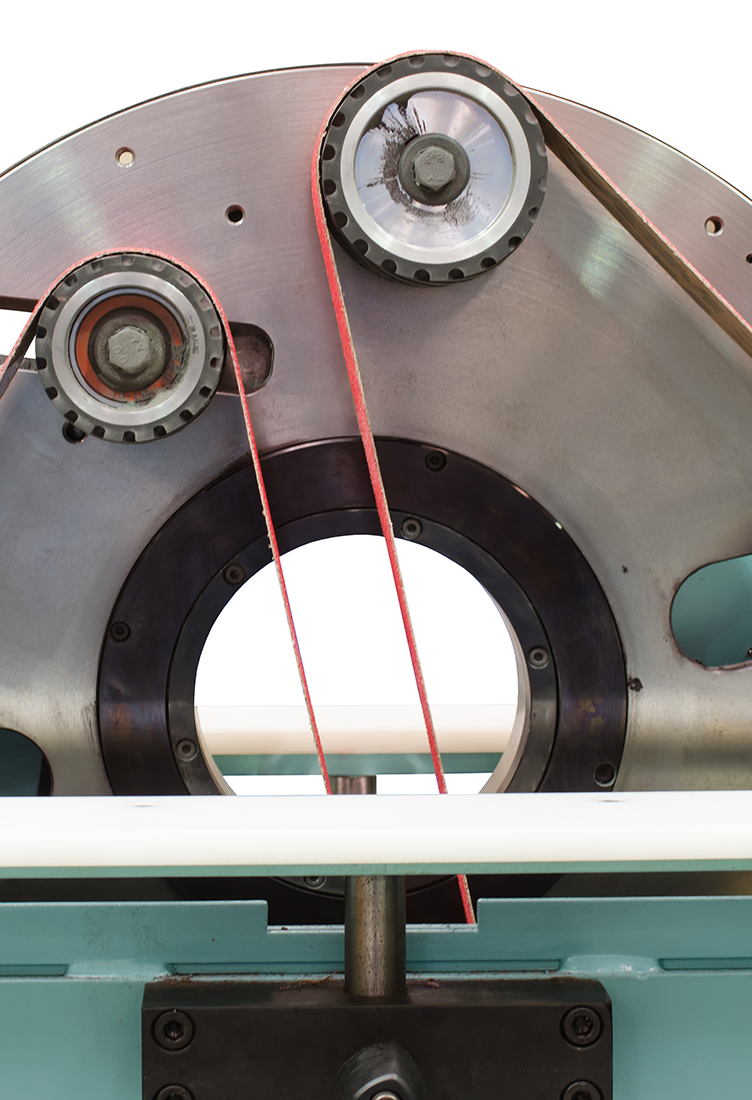

Its orbital system allows the abrasive belts to rotate around the workpiece, efficiently processing tubes with round, oval, elliptical, or irregular sections, as well as tapered or specially shaped parts.

Equipped with an advanced wet processing system, LPC300 WET unit grant consistent surface quality, making it ideal for grinding and polishing stainless steel, steel, brass, aluminium, and other non-ferrous metals. The wet cooling system is particularly effective for finishing light alloys, aluminium, and titanium, ensuring high-quality results even on heat-sensitive materials. Dry polishing and finishing are also possible, offering maximum flexibility for different production requirements.

For enhanced versatility, the machine can be supplied with a variety of optional equipment and accessories on request, allowing manufacturers to customize it for specific tube finishing applications while achieving exceptional efficiency and surface quality.

Technical specifications

Diameter min. / max.	D = 5-114 mm (4,5" max)
Minimum bending radius	R1 = min. 150 mm \| R2 = 1,5 x Ø mm
Abrasive belt dimensions	S = 940 mm \| L = 60 mm
Disk motor	1,5 kw
Abrasive belt motor	3,0 kw
Hydraulic pump motor	0,12 kw
Net Weight	310 kg
Overall dimensions	H = 126 cm \| P = 150 cm \| L = 100 cm

Equipment on request

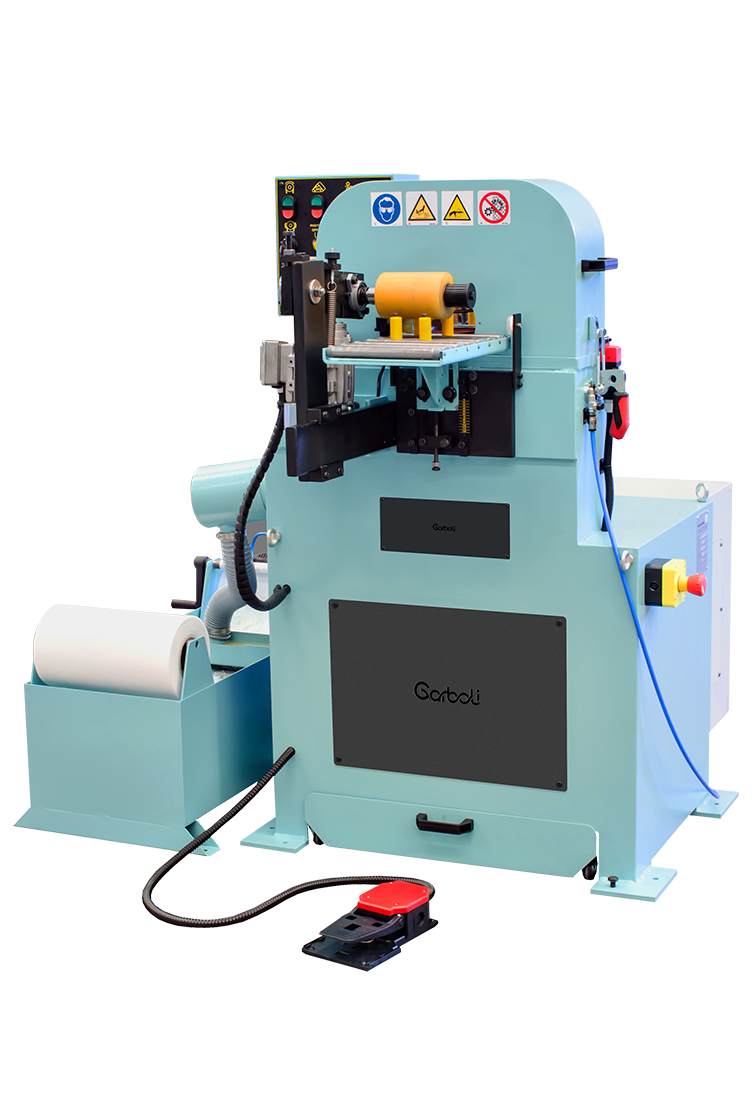

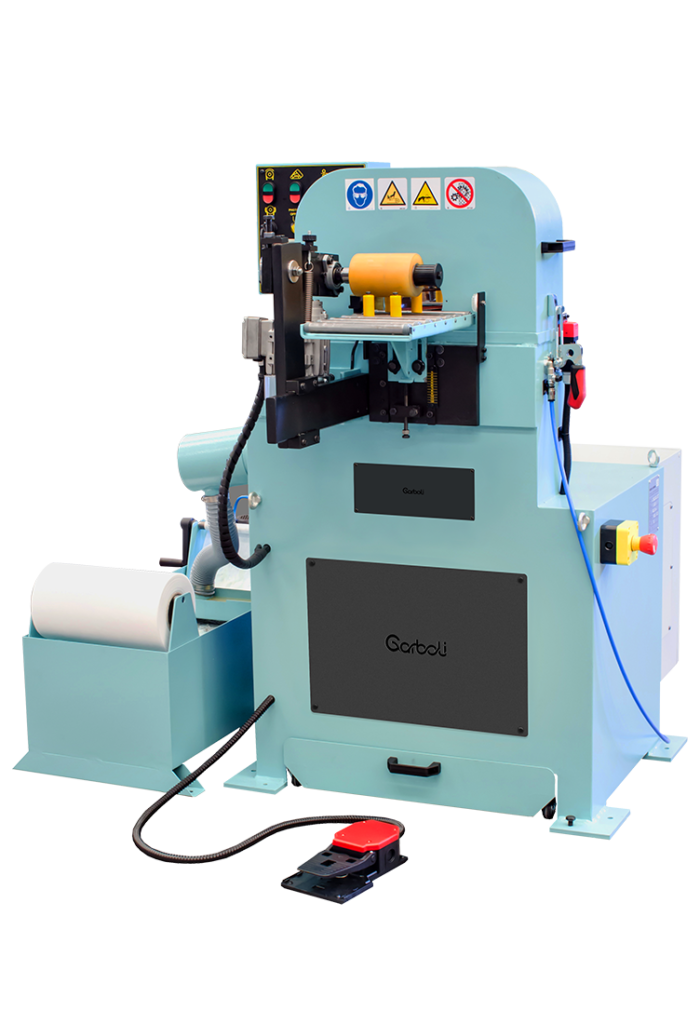

AN foot pedal equipment for an easier workpiece insert between the abrasive belts

AN/A equipment, complete with “Keyence” photocell and PLC to determinate abra sive belts opening and closing (to link with AV-AVU-ADN feed systems )

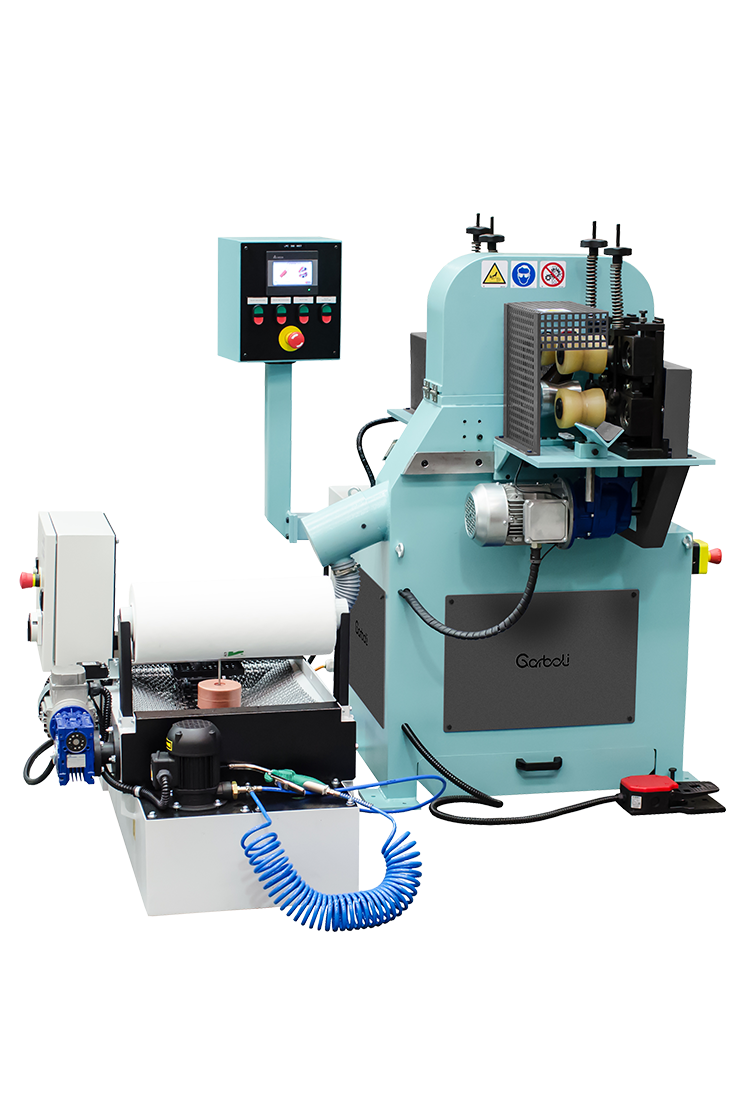

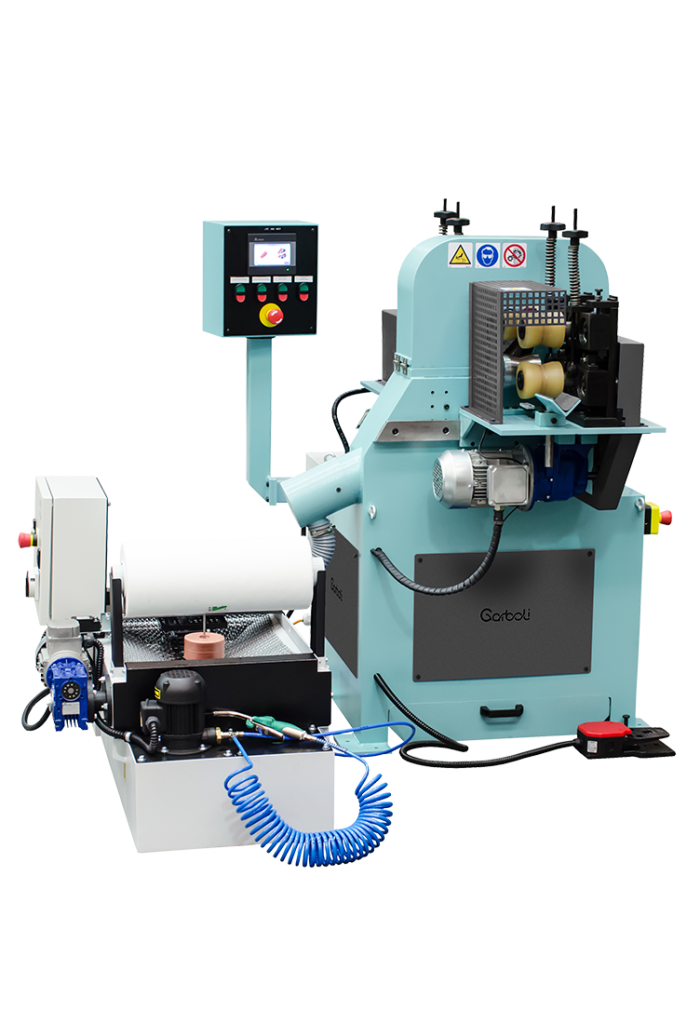

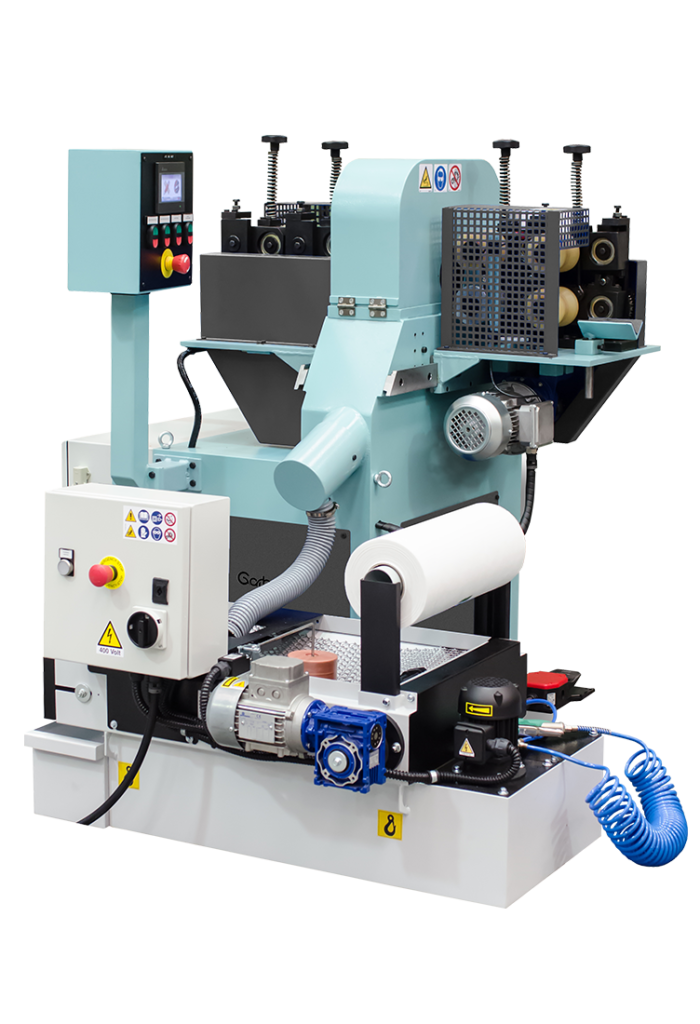

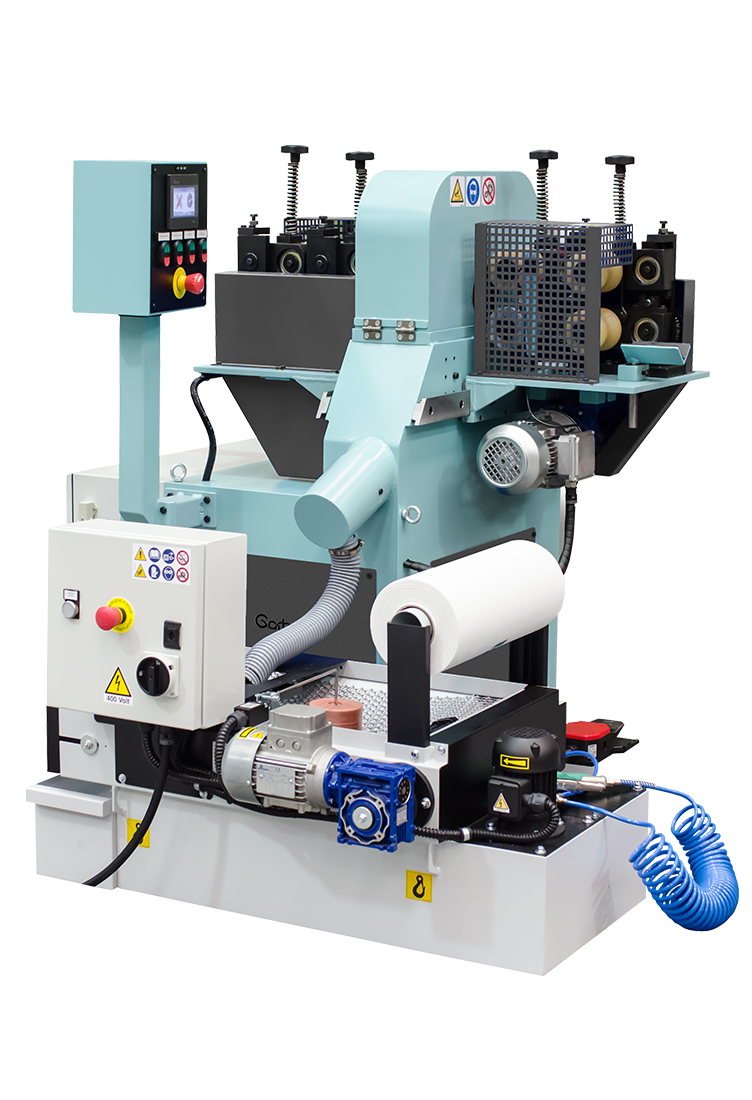

ADN automatic feed system for straight tubes with 4+4 rollers diameter 20-114 mm 3-4 (NOT for taper parts), with adjustable speed by inverter (hinged for “manual” feed)
