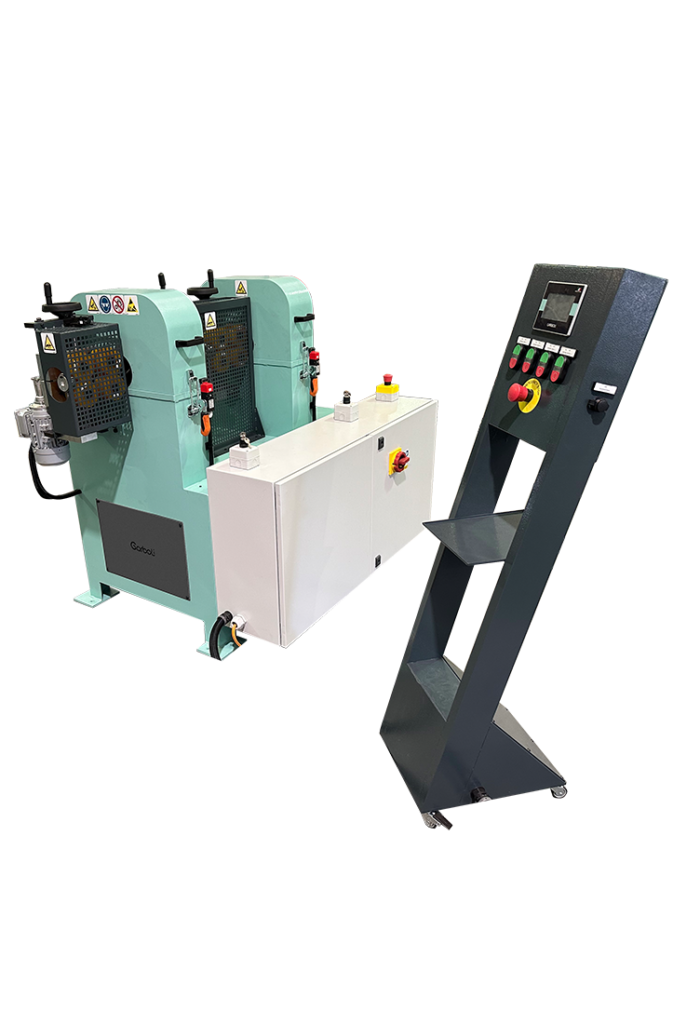

The LPC300/S double head polishing machine is a reliable solution for professional tube finishing.
Featuring two abrasive belt polishing heads mounted on a single base frame, the first unit performs precise rough tube grinding, while the second ensures flawless surface finishing on straight tubes with round, oval, elliptical, or irregular sections. It is suitable for stainless steel, steel, aluminium, brass, and a wide range of other metals.
Delivered fully assembled and ready for immediate use, the LPC300/S includes automatic feed systems for straight tubes and photocell for abrasive belts opening/closing, ensuring efficient, precise, and consistent operation.
For enhanced versatility, the machine can be equipped with a variety of optional accessories and customized solutions, allowing manufacturers to tailor this multihead machine to specific production requirements while achieving superior surface quality.
Technical specifications
| Diameter min. / max. | D = 5-114 mm (4,5" max) |
| Min/max dimensions of square parts | S = 940 mm | L = 60 mm |
| Disk motor | 2x 1,5 kw |
| Abrasive belt motor | 2x 3,0 kw |
| Feed motor | 0,18kw |
| Net Weight | 520 kg |
| Overall dimensions | H = 130 cm | P = 100 cm | L = 200 cm |
Equipment on request
