The “WET” orbital belt grinding machine is a high-performance solution for professional tube grinding, satin finishing, and polishing applications.

Thanks to its advanced wet polishing system, this machine ensures superior surface quality and optimal cooling during processing, making it ideal for bent tubes with round, oval, or irregular sections.

Engineered for versatility and precision, it efficiently processes stainless steel, carbon steel, aluminium, brass, titanium, and other light alloys. The wet working system significantly reduces heat generation, improves surface finish, and enhances abrasive belt life, making it particularly suitable for demanding applications such as titanium tube polishing and aluminium finishing.

The machine is suitable for grinding operations on tubes up to 50 mm in diameter, offering excellent material removal rates while maintaining consistent finishing standards. For maximum flexibility, it can also be operated in dry mode when connected to a dust collection system. This dual-operation capability allows to perfectly meet different production requirements.
A wide range of optional accessories and customized equipment is available upon request, enabling manufacturers to optimize the machine configuration according to specific tube finishing needs and industrial production processes.

Technical specifications

Diameter min. / max.D = 5-50 mm (2" max)
Minimum bending radiusR1 min. 80 mm | R2 = 1,5 x Ø mm
Abrasive belt dimensionsS = 622 mm | L = 30 mm
Disk motor Disc = 1,1 kw
Abrasive belt motor Belts = 2,2 kw
Hydraulic pump motor0,12 kw
Net Weight210 Kg
Overall dimensionsH = 125 cm | P = 150 cm | L = 100 cm

Equipment on request

AN foot pedal equipment for an easier workpiece insert between the abrasive belts
AN foot pedal equipment for an easier workpiece insert between the abrasive belts
AN/A equipment, complete with “Keyence” photocell and PLC to determinate abra sive belts opening and closing (to link with AV-AVU-ADN feed systems )
AN/A equipment, complete with “Keyence” photocell and PLC to determinate abra sive belts opening and closing (to link with AV-AVU-ADN feed systems )
DN automatic feed system for straight tubes with 4+4 rollers for dia. 20-50 mm.  (NOT for taper parts) with adjustable speed by inverter (hinged for “manual” feed  processings)
DN automatic feed system for straight tubes with 4+4 rollers for dia. 20-50 mm. (NOT for taper parts) with adjustable speed by inverter (hinged for “manual” feed processings)
AV SELFCENTERING feed  for straight and  taper parts max diam. 45 mm.
AV SELFCENTERING feed for straight and taper parts max diam. 45 mm.
AVU “UNIVERSAL” feed for both straight and bent parts with adjustable speed by inverter
AVU “UNIVERSAL” feed for both straight and bent parts with adjustable speed by inverter
Abrasive belts speed adjustable (10-30 mt./sec.) with  increased power special in verter (4 kw.) and digital display  with mt./sec. real values
Abrasive belts speed adjustable (10-30 mt./sec.) with increased power special in verter (4 kw.) and digital display with mt./sec. real values
APM “manual”  special feed and APN automatic special feed with “chuck point tailstock system” for short parts
APM “manual” special feed and APN automatic special feed with “chuck point tailstock system” for short parts
Touch-screen display and PLC with device  for remote assistance
Touch-screen display and PLC with device for remote assistance
Annual fee for remote assistance management

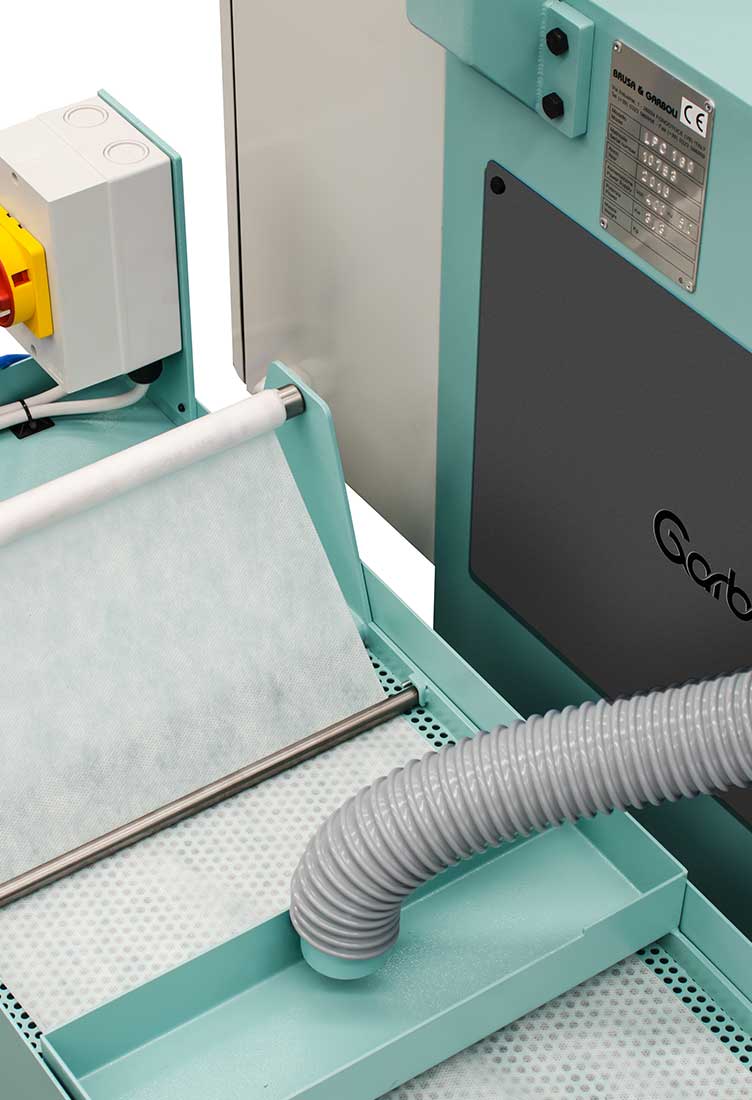

External cooling mixture collecting and filtering equipment with automatic filtering  paper rolling
External cooling mixture collecting and filtering equipment with automatic filtering paper rolling
