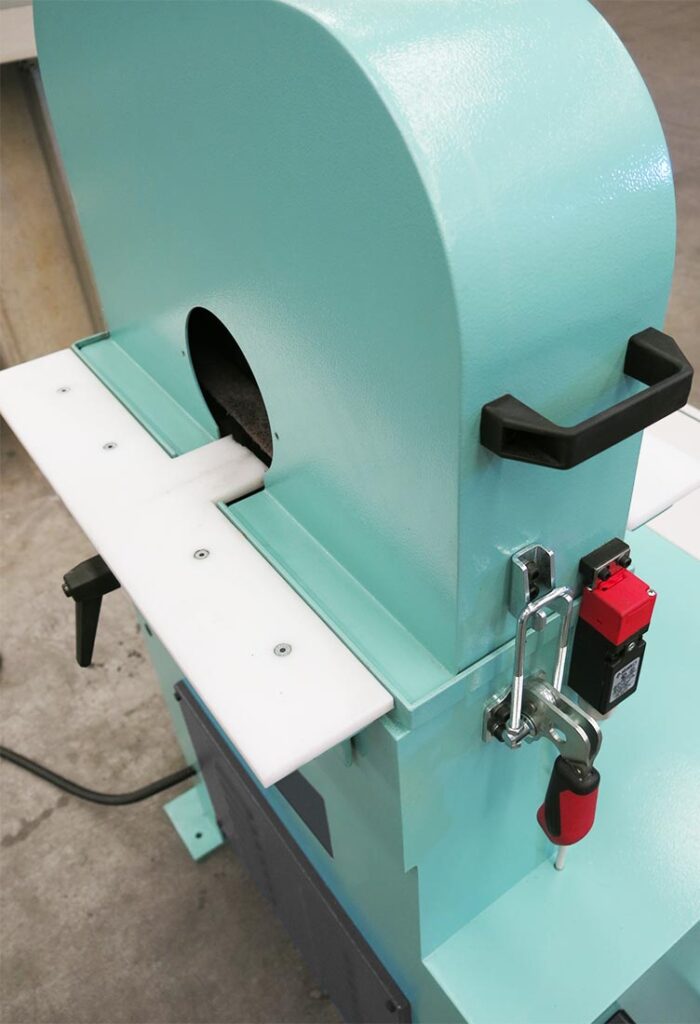

The planetary belt polishing machine LPC160VS is engineered to deliver flawless surface polishing on highly bent tubes, including round, oval, elliptical, or irregular sections.
It efficiently processes stainless steel, iron, aluminium, brass, and other non-ferrous metals, offering a complete range of metal finishing capabilities such as tube grinding, pipe finishing, and satin finishing.

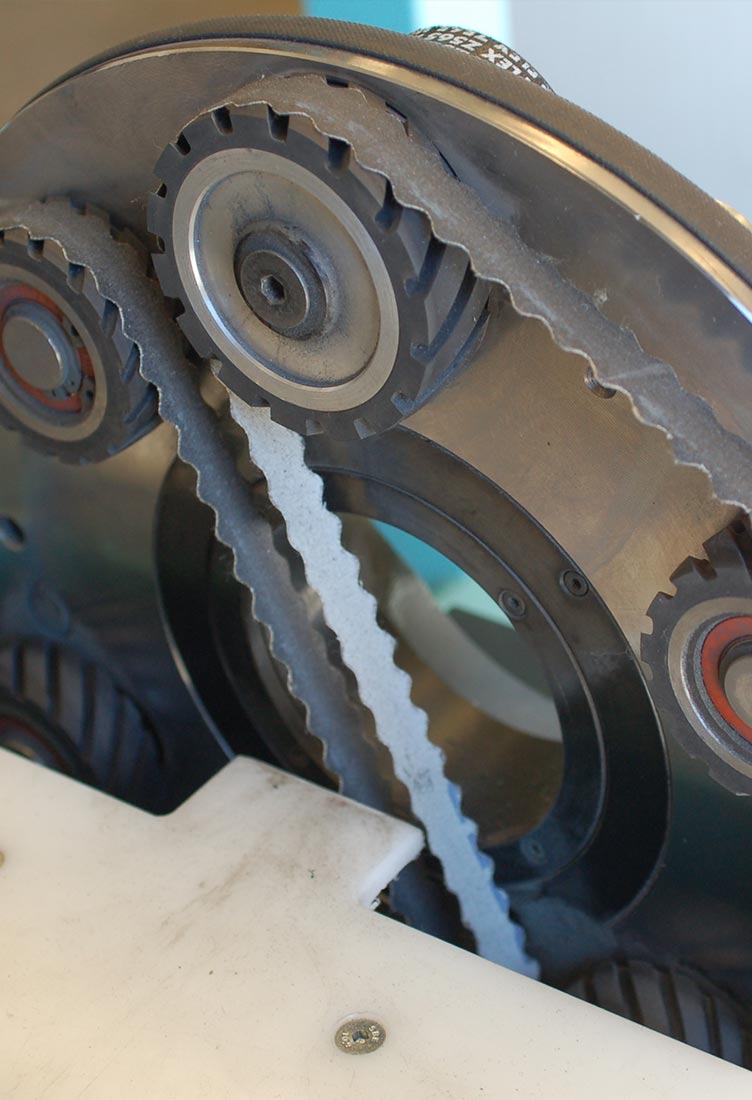

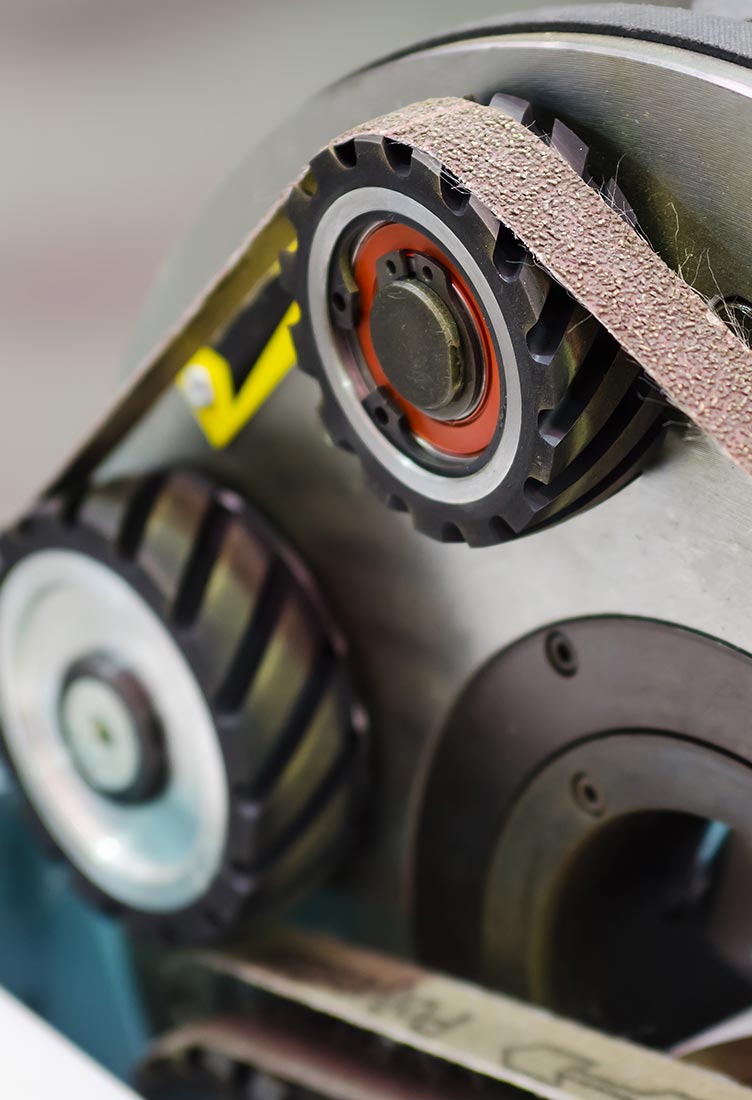

Designed for flexibility and customization, the LPC160VS features a modified base frame and special narrow belts, making it ideal for handling very narrow bent tubes with precision. Its adaptable design ensures high-quality results even on complex geometries.
A wide selection of optional equipment and accessories is available on request, allowing manufacturers to tailor the machine to specific production needs and achieve superior efficiency, surface quality, and versatility in every tube finishing process.
Technical specifications
| Diameter min. / max. | D = 5-50 mm (2" max) |
| Minimum bending radius | R = 1,2 x Ø mm |
| Abrasive belt dimensions | S = 622 mm | L = 15 mm |
| Disk motor | Disc = 1,1 kw |
| Abrasive belt motor | Belts = 2,2 kw |
| Net Weight | 185 kg |
| Overall dimensions | H = 125 cm | P = 90 cm | L = 100 cm |
Equipment on request
