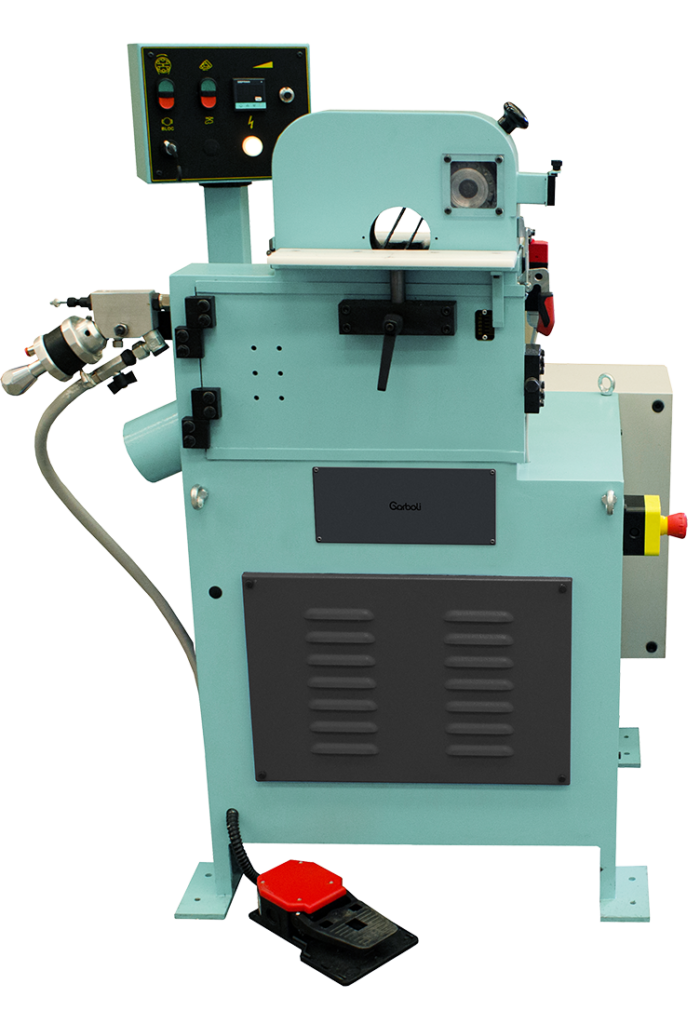

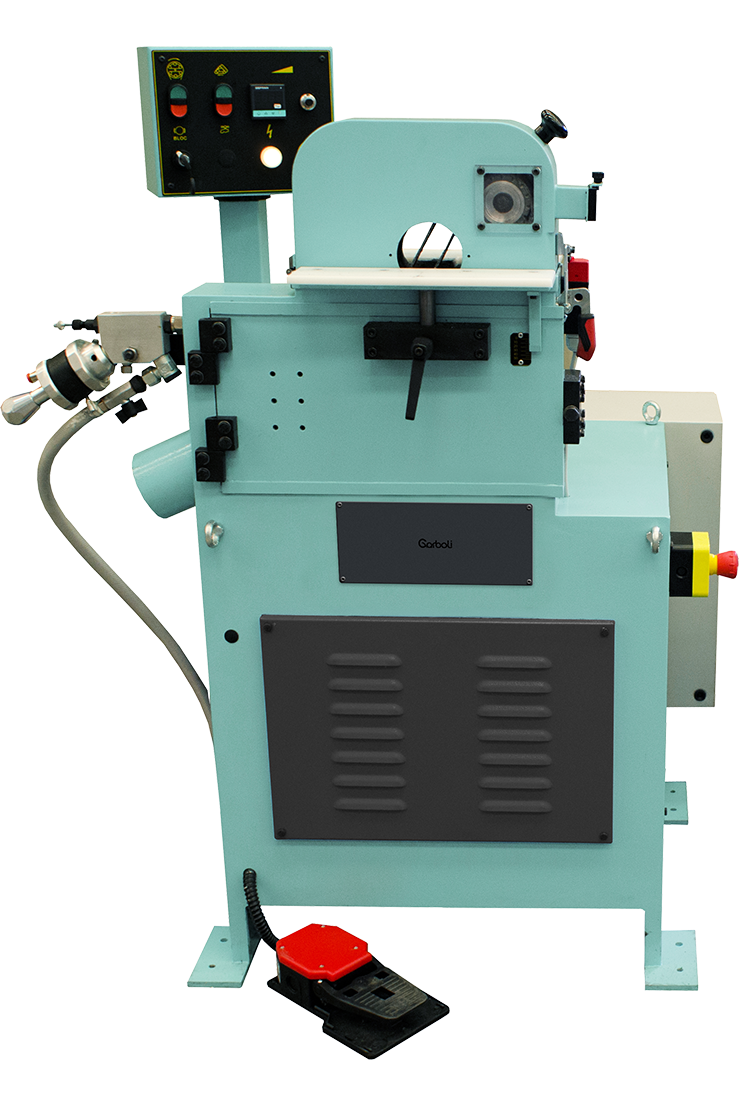

LPC 160 Mirror

This orbital belt buffing machine is a premium solution designed for achieving flawless mirror polishing and buffing on bent tubes.

It handles round, oval, and irregular sections with diameters from 5 to 50 mm, and is compatible with stainless steel, steel, brass, and a wide range of other metals.

For enhanced productivity, the machine can be optionally equipped with a liquid polishing paste dispenser and a variety of other accessories, allowing for fully customized finishing setups.

For more specialized applications, the LPC 160 MIRROR rotary polishing machine offers advanced capabilities. Using standard abrasive belts, it is ideal for grinding and surface preparation before mirror polishing, ensuring a perfect, high-gloss finish. The machine is supplied complete with an Inverter device, providing precise control and optimal performance for professional-grade mirror buffing.

This orbital belt buffing system delivers consistent, high-quality results, making it the perfect choice for metal fabrication shops and industrial manufacturers seeking superior surface finishing on complex tube geometries.

Technical specifications

Diameter min. / max.	D = 5-50 mm (2" max)
Minimum bending radius	R1 min. 80 mm \| R2 = 1,5 x Ø mm
Abrasive belt dimensions	S = 622 mm \| L = 30 mm
Disk motor	Disc = 1,5 hp
Abrasive belt motor	Belts = 3,0 hp
Net Weight	195 kg
Overall dimensions	H = 125 cm \| P = 90 cm \| L = 100 cm

Equipment on request

AN foot pedal equipment for an easier workpiece insert between the abrasive belts

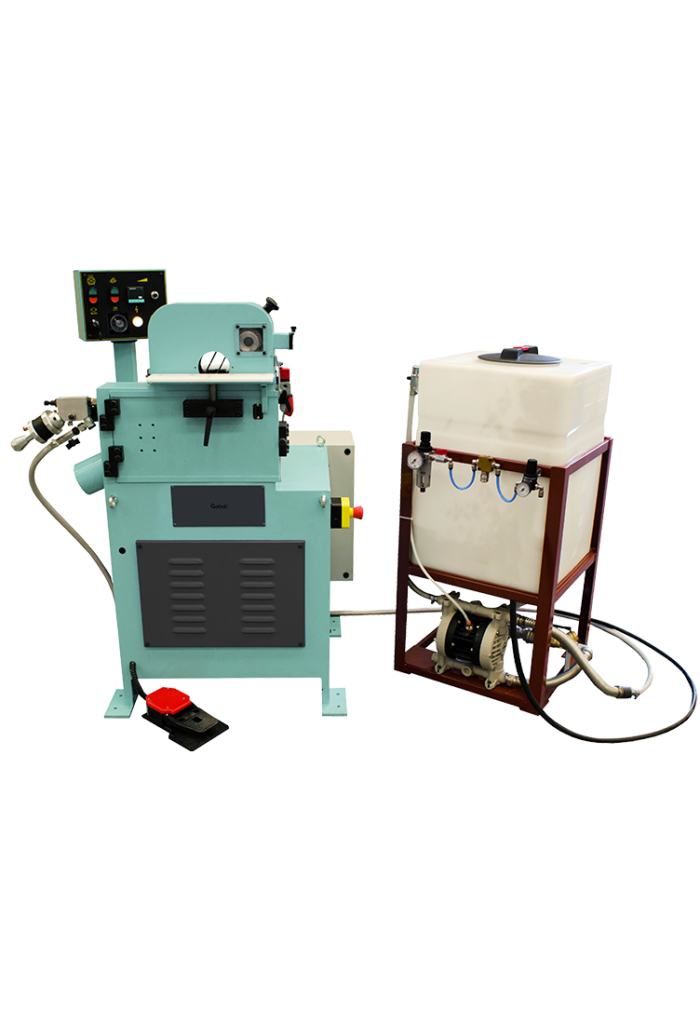

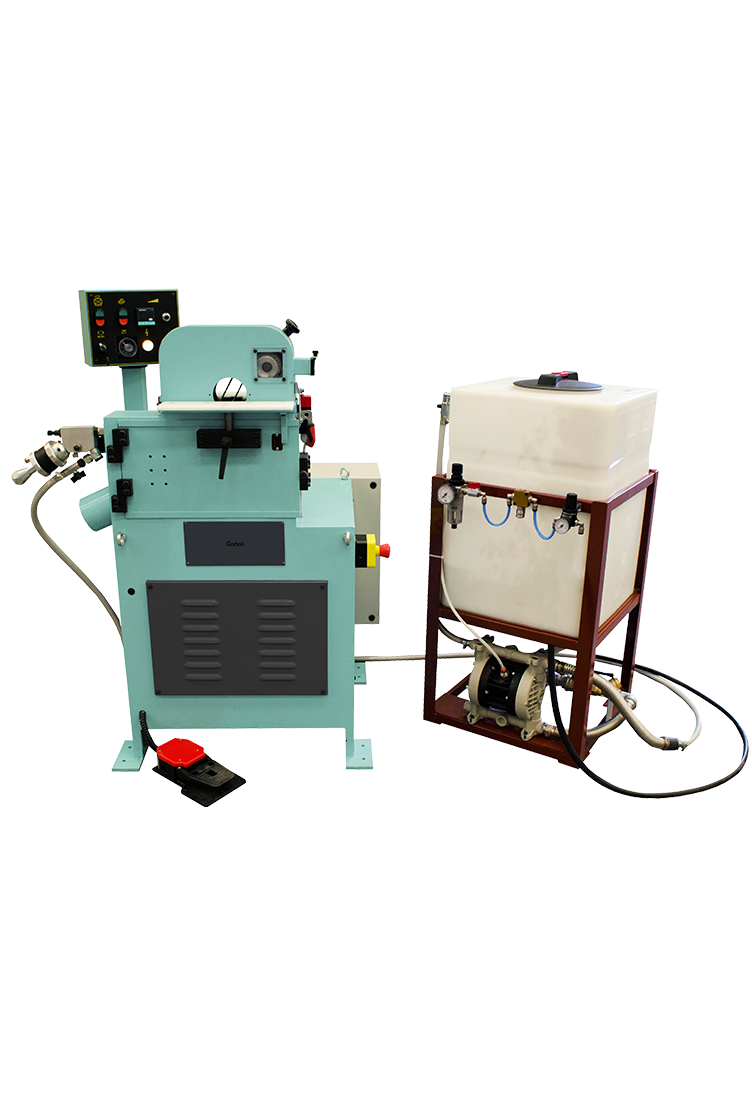

Automatic dispenser for liquid abrasive paste (NET price)

AN/A equipment, with “Keyence” photocell and PLC to determinate belts opening and closing (to link with AV-AVU-ADN feed systems)

DN automatic feed system for straight tubes with 4+4 rollers for dia. 20-50 mm. (NOT for taper parts) with adjustable speed by inverter (hinged for “manual” feed processings)
